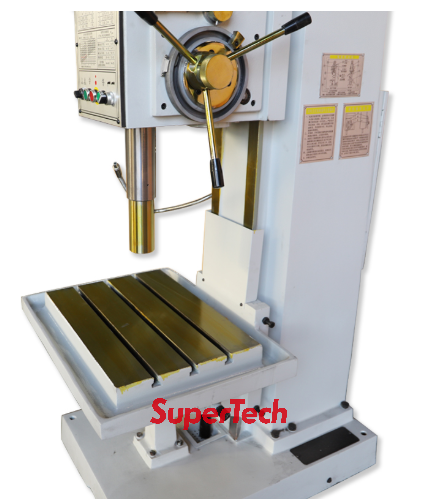

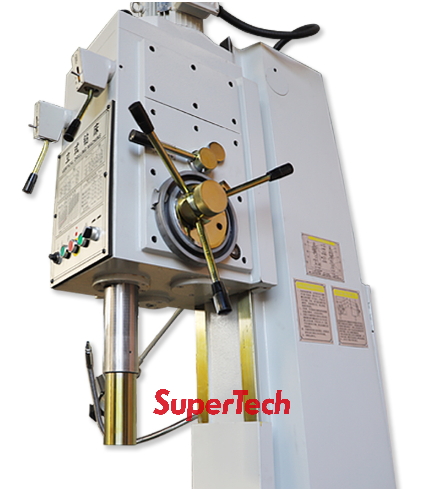

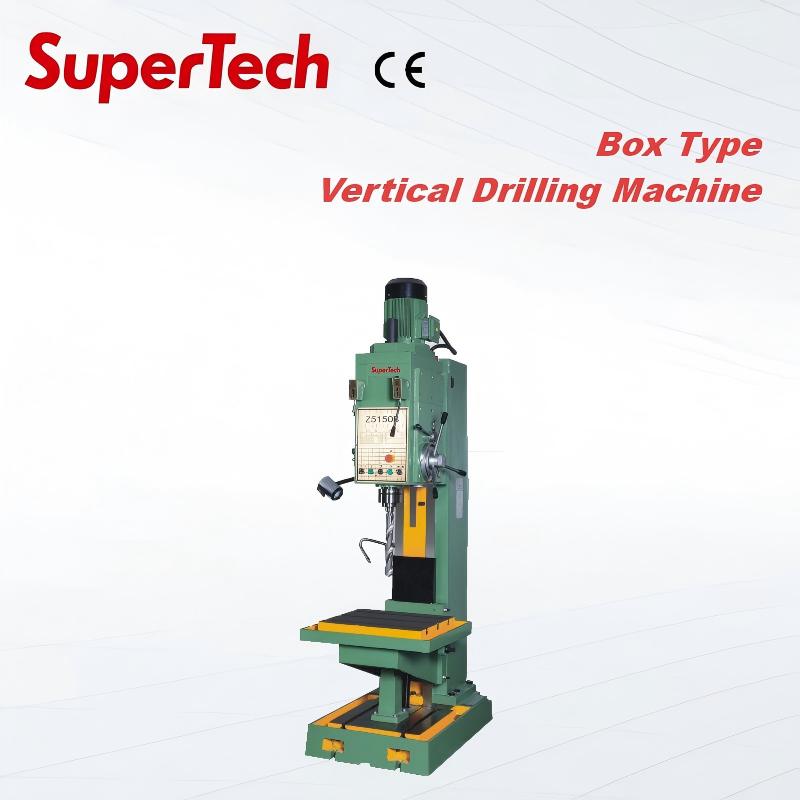

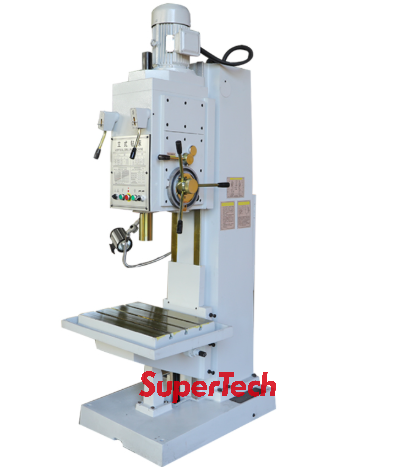

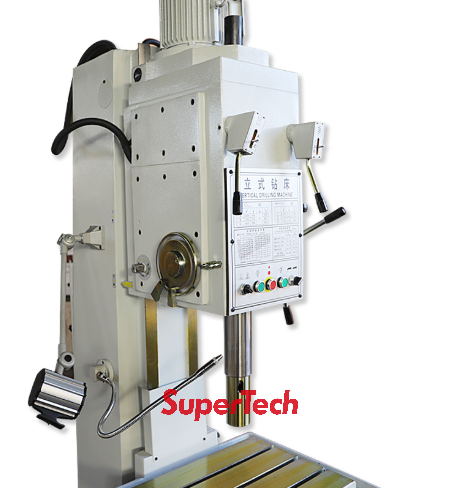

Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
1 / 5
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill
Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill

Z5150B Box Type Vertical Drilling Machine Large Drilling Stroke Deep Hole Drill

Send Inquiry

Product Description

Product Description
Z5035 Drilling Machine
Product Description Of Z5035
SuperTech Z5150B box type vertical drilling machine is specially designed for metalworking scenarios, featuring a high-strength box structure and gear transmission system to efficiently perform drilling, reaming, and tapping on steel, cast iron, aluminum alloy, and other materials. With industrial-grade durability and operational flexibility, it caters to diverse needs of mass production, small-batch processing, and maintenance workshops.
Core Advantages and Technical Highlights
The machine minimizes vibration with its rigid box frame, while the multi-speed gear transmission system allows precise adjustment of rotation speed and feed pressure according to material properties. The ergonomic control panel simplifies operation, and the automatic lubrication system reduces maintenance costs. The energy-efficient motor balances performance and energy saving. Its T-slotted worktable supports various fixtures, ideal for processing complex parts like flanges and mechanical components, with drilling accuracy and surface finish meeting industrial standards.
Application Scenarios and Certification Services
Z5150B is widely used in industries such as automotive parts, hydraulic components, and construction machinery, especially suiting metalworking needs of small and medium-sized enterprises. The machine is CE-certified and comes with a 1.5-year warranty. It is packaged in moisture-proof wooden cases for global logistics, and custom fixtures can be provided based on customer requirements to enhance processing efficiency and production flexibility.
Specifications
Main specifications Unit Z5140B Z5150B Z5163B
Max.drilling capacity mm 40 50 63
Max.feed resistance N 16000 16000 30000
Max.permissible spindle torque NM 350 350 800
Throat distance mm 335 335 375
Spindle taper / MT4 MT5 MT5
Spindle travel mm 250 250 250
Spindle box travel(manual) mm 200 200 250
Spindle speed range/steps rpm 12steps/31.5-1400 12steps/31.5-1400 9steps/40-570
Feed rates mm/r 0.056-1.8 0.056-1.8 0.1-0.78
Feed rates steps steps 9 9 6
Max.travel of table mm 300 300 300
Work table size mm 560*480 560*480 650*550
Max.distance from spindle nose to table mm 830 830 800(1250)
Main motor KW 3 4 5.5
Package dimension mm 1220*800*2240 1220*800*2240 2750*1010*1790
Net weight kg 1100 1200 1800

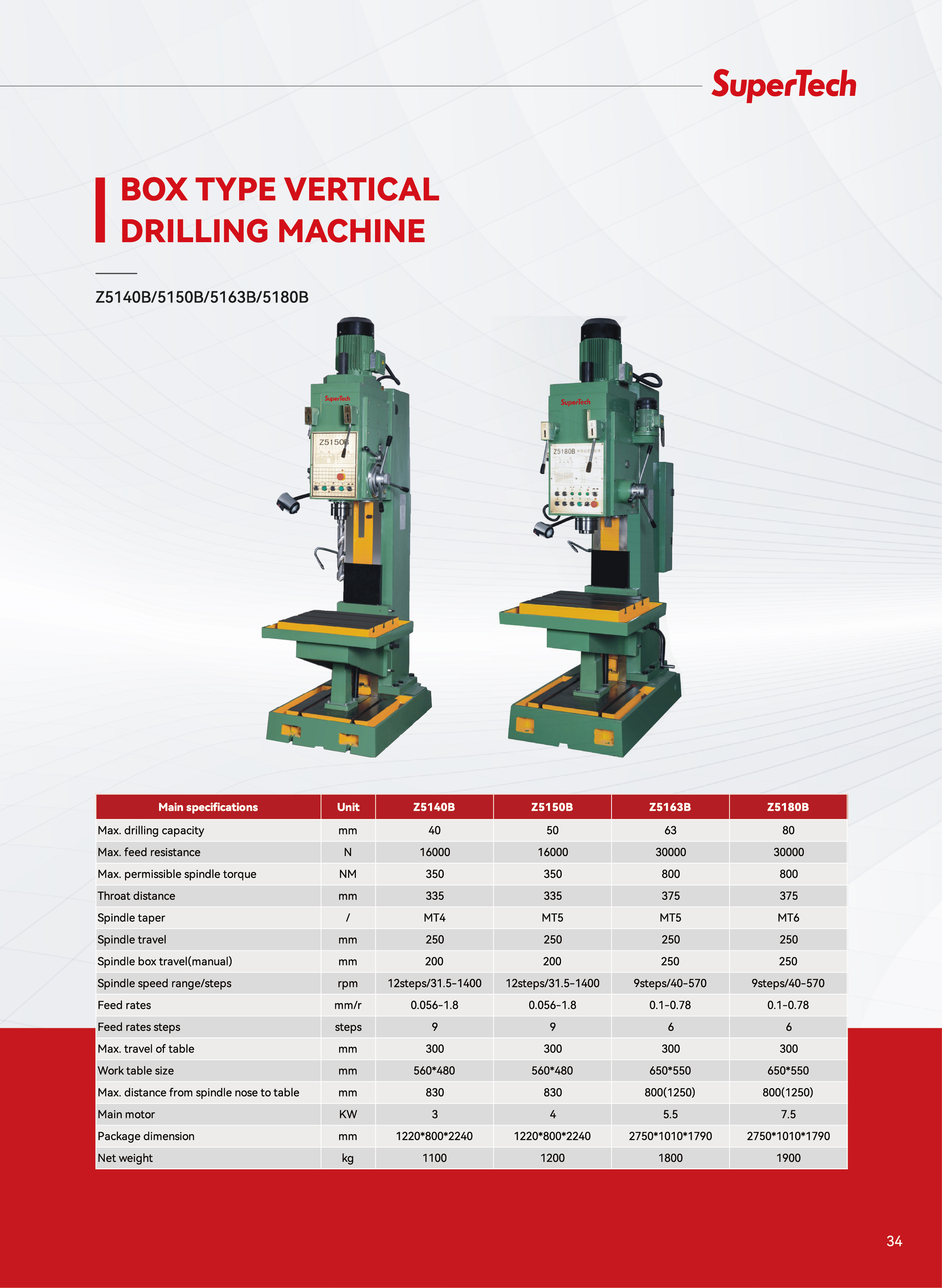

Specification details
Company Profile
Supertech established in 2010, relying on the lathe business, deeply ploughing the overseas export field of industrial machinery. With the growing international market and the unremitting efforts of the company team, Supertech is gradually transforming and upgrading to provide comprehensive and efficient metal machinery solutions for new factories and new projects, and putting them into practice.
Supertech company has become an important force in the field of machinery manufacturing with years of accumulation and steady development. In the future, the company will continue to adhere to the rigorous, prudent and rational business philosophy, and constantly improve the product quality and service level, to provide global users with more high-quality, reliable mechanical products and application solutions.
Certifications
Certifications
Exhibitions & Customer Visits
Exhibitions and Customer Visits
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing & Delivery
Why Choose Us
Why Choose Us
Frequently Asked Questions
What materials are the Z5150B drilling machines capable of processing?
The machine is designed to efficiently perform drilling, reaming, and tapping on various metal materials including steel, cast iron, aluminum alloy, and other mechanical materials.
What certifications do your vertical drilling machines carry?
The Z5150B box type vertical drilling machine is CE-certified, meeting European safety, health, and environmental protection standards.
What is the warranty period for this machinery?
We offer a 1.5-year warranty on the machine to guarantee reliable performance and ease of mind for mass production and workshop operations.
How are the machines protected against damage during transportation?
To ensure maximum cargo safety, all products are packed in professional, moisture-proof wooden cases specifically structured for global sea and land logistics.
Can I request customized fixtures for special workpieces?
Yes, custom fixtures can be designed and provided based on your specific application requirements to enhance processing precision and overall production flexibility.
