| Grade | Coated color | Description | Corresponding grade |
|---|---|---|---|
| Class P Turning Grade (Steel) | |||
| YC330 | Black | The combination of high wear resistance substrate with (MT-TiCN+thick AL2O3 +TiN) coating is suitable for finishing machining of steel at high speed. | GC4015 UE6010 CA5515 YBC152 |
| YC331 | Black | The combination of high strength and high toughness substrate with (MT-TiCN+thick AL2O3 + TiN) coating is the general brand of steel processing. | GC4025 UE6020 CA5025 YBC252 |
| YC332 | Black | High-strength and plastic-resistant substrate combined with (MT-TiCN+thick AL2O3 + TiN) coating, has good toughness and resistance to plastic deformation. It is suitable for light rough machining and rough machining of steel parts. | GC4035 UE6035 CA9025 YBC351 |
| YC333 | Yellow | The combination of high strength and high toughness substrate with (MT-TiCN+thick AL2O3 + TiN) coating is the general brand of steel processing. | GC4015 UE6010 CA5515 YBC152 |
| Class K Turning Grade (Cast iron) | |||
| YC531 | Black | High wear resistance substrate with (MT-TiCN +thick AL2O3) coating is the first choice for machining of nodular cast iron and gray cast iron. | GC3005 UC5115 CA4115 YBD102 |
| YC532 | Black | Good wear resistance and toughness substrate with (MT-TiCN +thick AL2O3) coating is suitable for rough machining of nodular cast iron and grey cast iron. | GC3025 UC6010 CA4120 YBD252 |
| Class M Turning Grade (Stainless steel, and alloy metal) | |||
| YP730 | Black | High toughness substrate with TiAlN coating of ultrafine grain size are suitable for light and medium load milling of all kinds of processed materials as well as finishing and semi finishing of stainless steel and high temperature alloy. | GC1020 VP15TF YBG202 |
| YP731 | Black purple | The high toughness substrate with TiAlSIN coating of ultrafine grain size, are universal and suitable for the processing of stainless steel and high temperature alloy. | GC2035 VP15TF YBG205 |

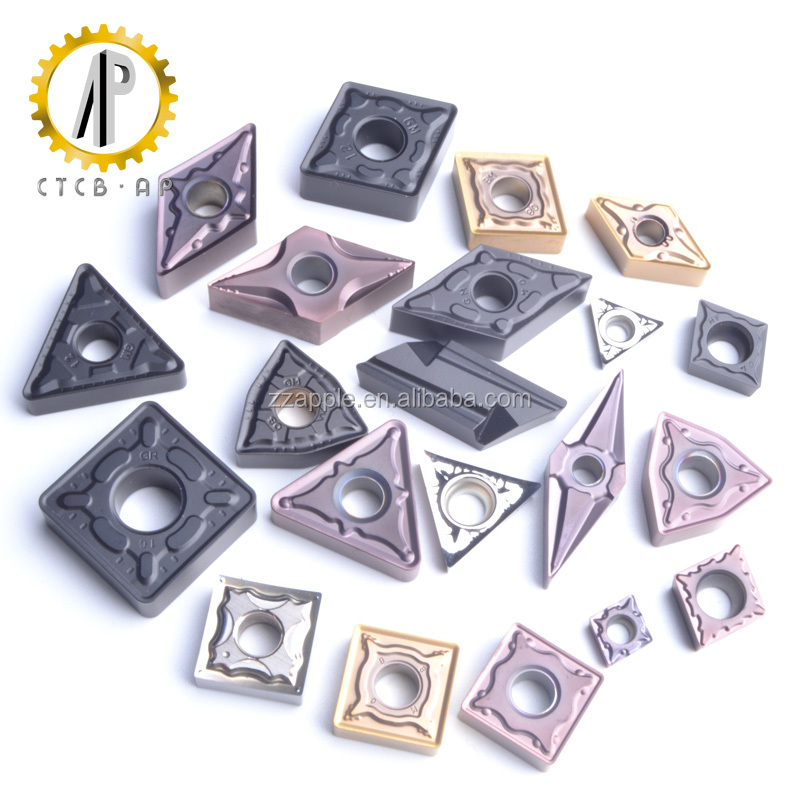

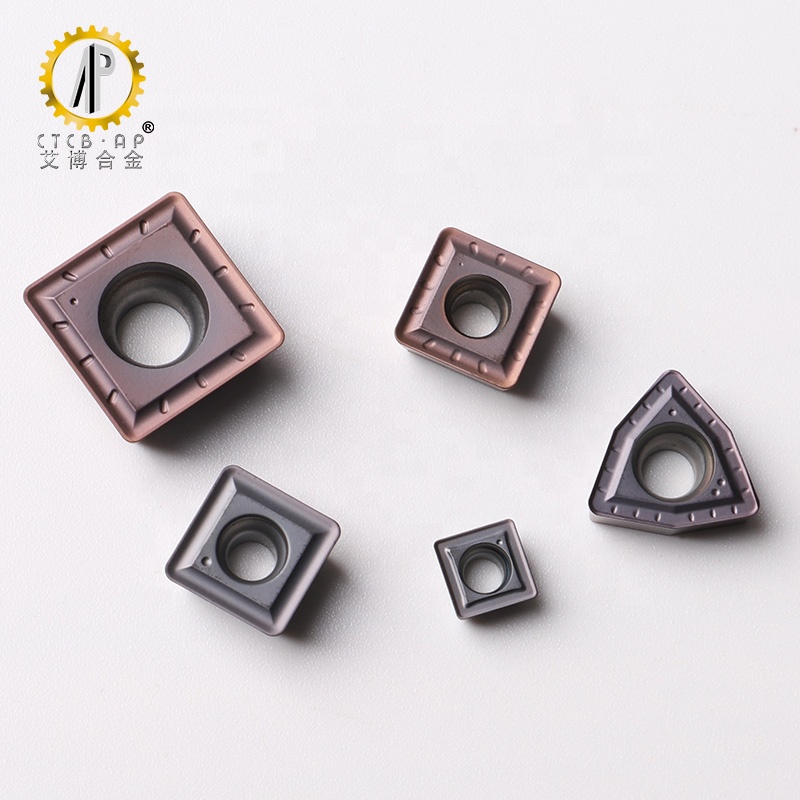

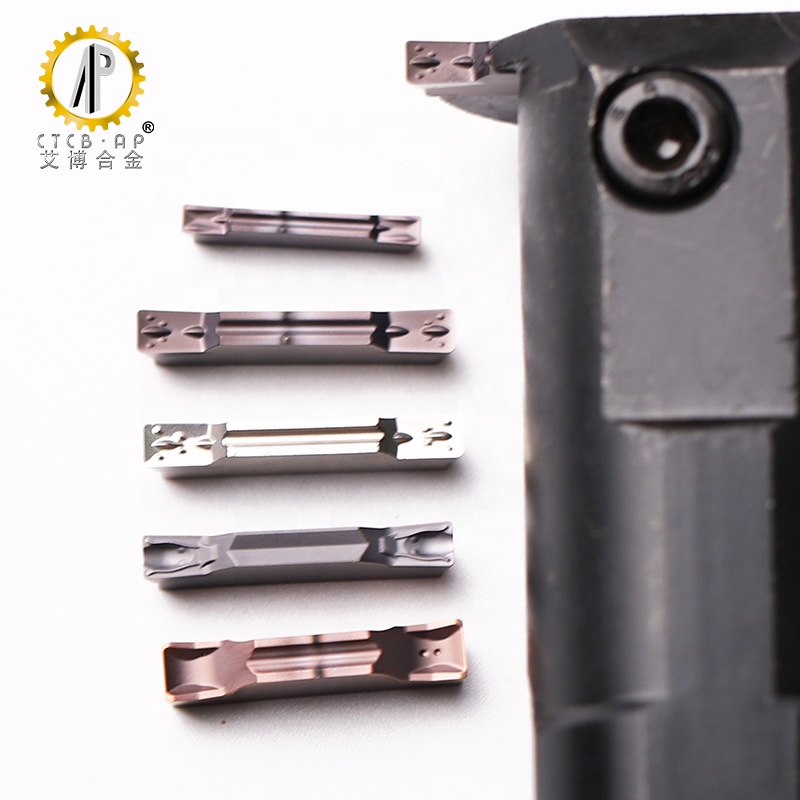

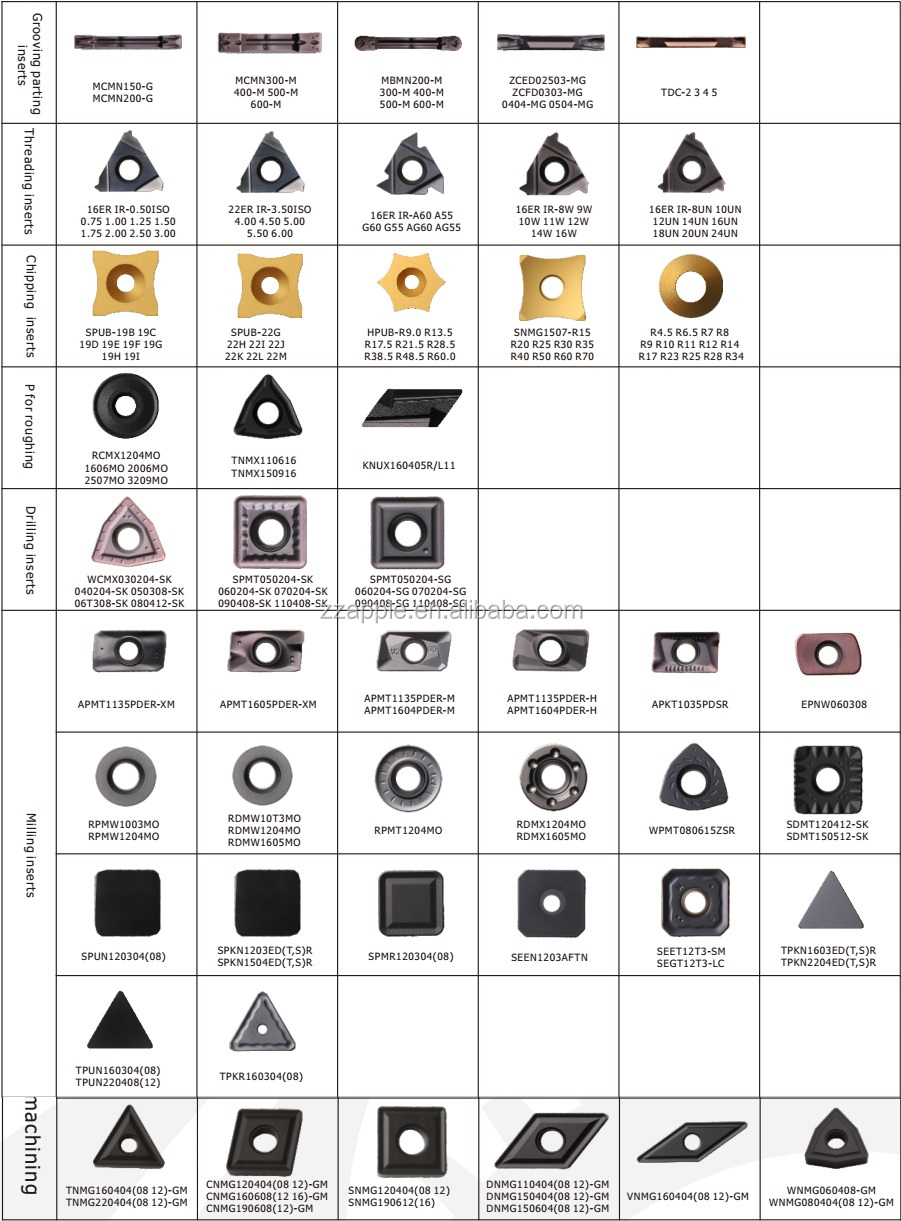

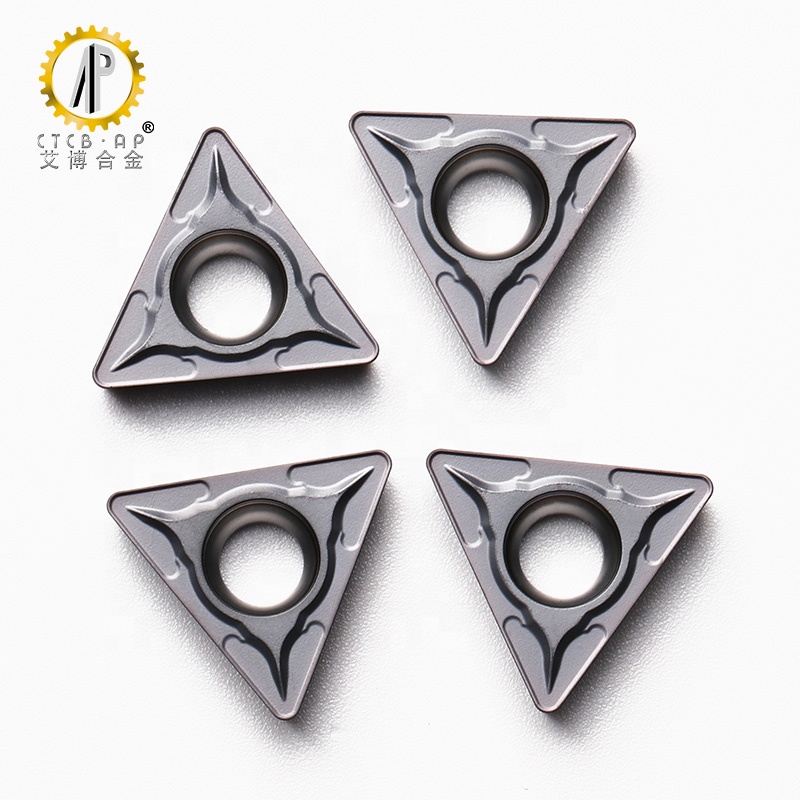

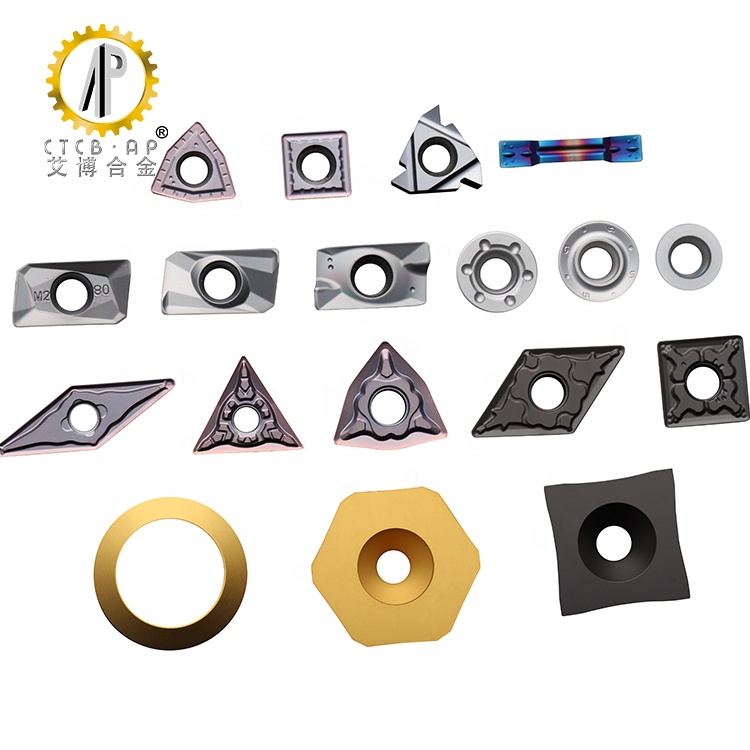

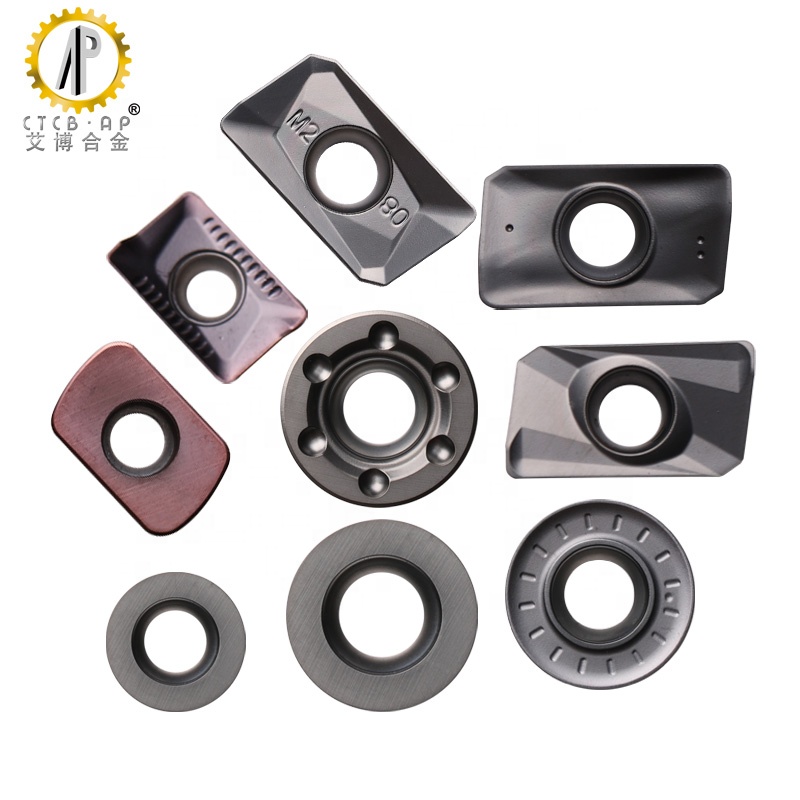

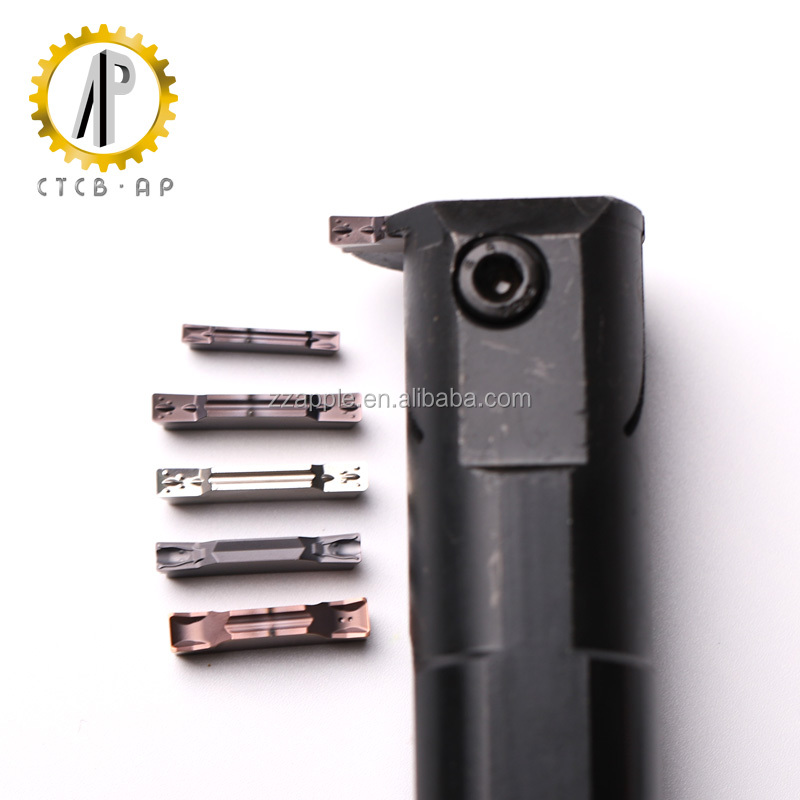

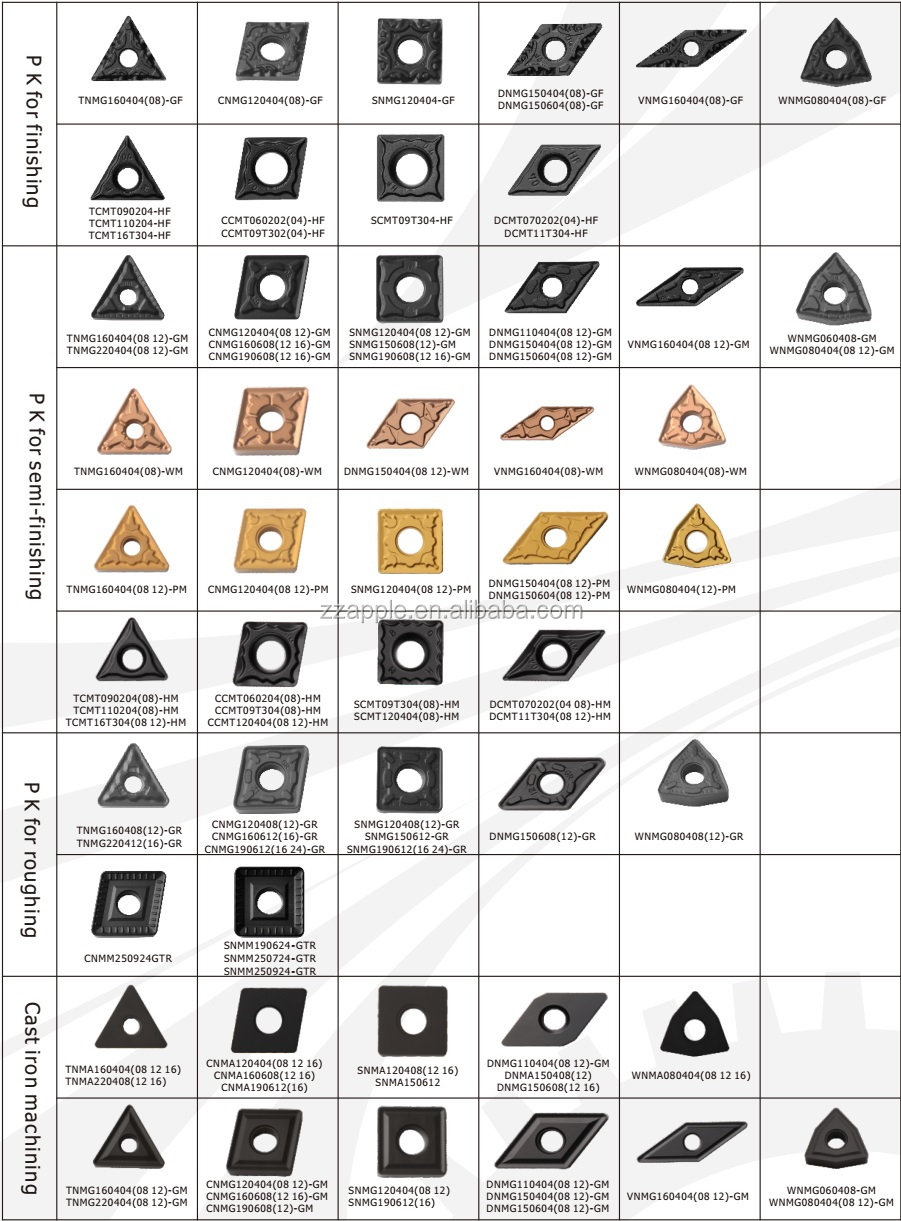

These tungsten carbide inserts are designed for versatile CNC lathe applications, including turning, milling, grooving, threading, and drilling across different workpiece materials such as steel, stainless steel, and cast iron.
For steel machining (Class P), you can choose grades like YC330 for high-speed finishing, YC331 or YC333 for general purpose steel processing, and YC332 for light rough to rough machining.

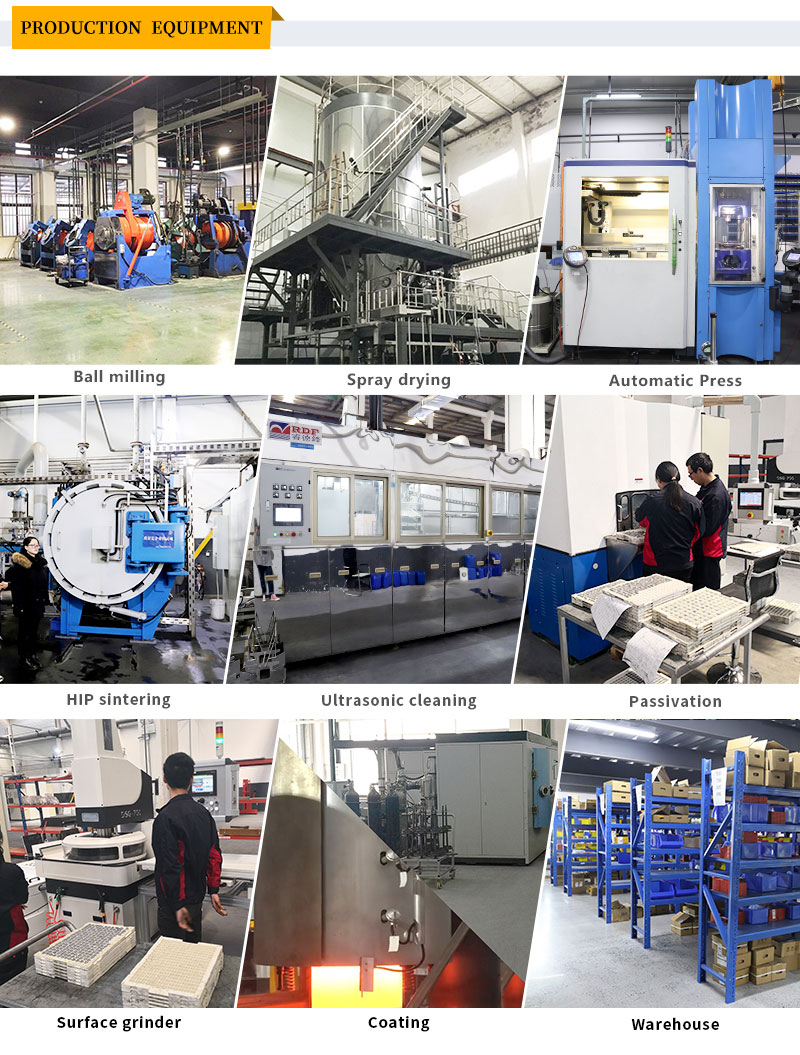

Our manufacturing integrates advanced spray tower granulation, automatic electric press suppression, full overpressure PVC sintering, and ultrasonic cleaning to ensure precise dimensions and uniform structural integrity.
We apply advanced coatings including MT-TiCN + thick AL2O3 + TiN for class P steel grades, and TiAlN / TiAlSIN multi-layer coatings for high toughness requirements in stainless steel and alloy metal machining.
For cast iron (Class K), the YC531 grade is recommended for general nodular and gray cast iron processing, while YC532 is preferred for rough machining tasks due to its optimal balance of wear resistance and toughness.
Yes, our inserts are designed to correspond with standard international grades and specifications (such as GC4015, UE6020, VP15TF, etc.), making them widely compatible with standard CNC insert holders.
