| Coating Type | ||||||
|---|---|---|---|---|---|---|
| Material Machined | Type | Color | HV | Um | Friction | Max Temperature |
| HRC45 | AlTiN | Black | 3300 | 1-4 | 0.7 | 850°C |
| HRC55 | TiSiAIN | Bronze | 3400 | 1-4 | 0.7 | 900°C |
| HRC65 | Naco3 Blue | Blue | 4500 | 1-7 | 0.45 | 1200°C |
| Stainless Steel | Naco 3 Gold | Golden | 4500 | 1-7 | 0.55 | 1200°C |

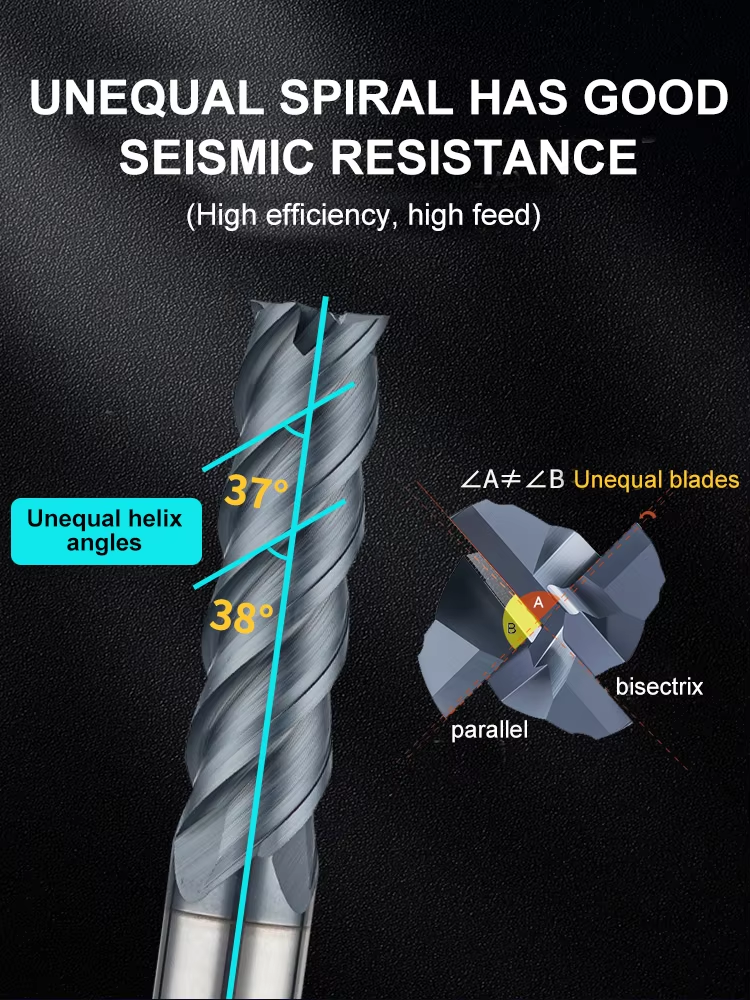

| Unequal Dynamic | AICrSiN | Black | 4000 | 1-7 | 0.35 | 1100°C |

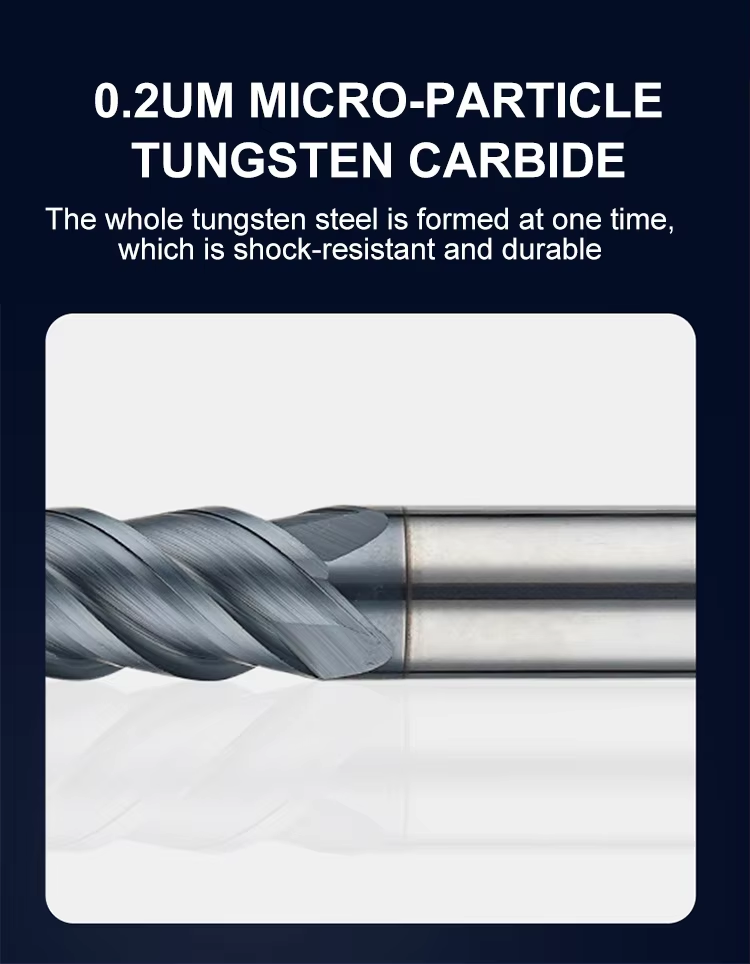

| Carbide Material Introduction | ||||
|---|---|---|---|---|
| Raw Material Series | Material Grade | Grain | Introduction | Application |
| HRC45 | YL0.2 | 0.6um | YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance | Suitable for General Steel |
| HRC55 | K30 | 0.5um | K30 is ultra fine grain and contains Ni and Cr element, which provides high strength and good toughness. | General Steel, Stainless Steel, cast iron |
| HRC65 | WF25 | 0.4um | WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance | stainless steel |
| Stainless Steel | GU25UF | 0.4um | K30 is ultra fine grain and contains Ni and Cr element, which provides high strength and good toughness. | Titanium Alloy, High-temperature Alloy, Harden material, etc |
| Unequal Dynamic | WF25 | 0.4um | WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance | High Hard Material, steel cast iron, etc |

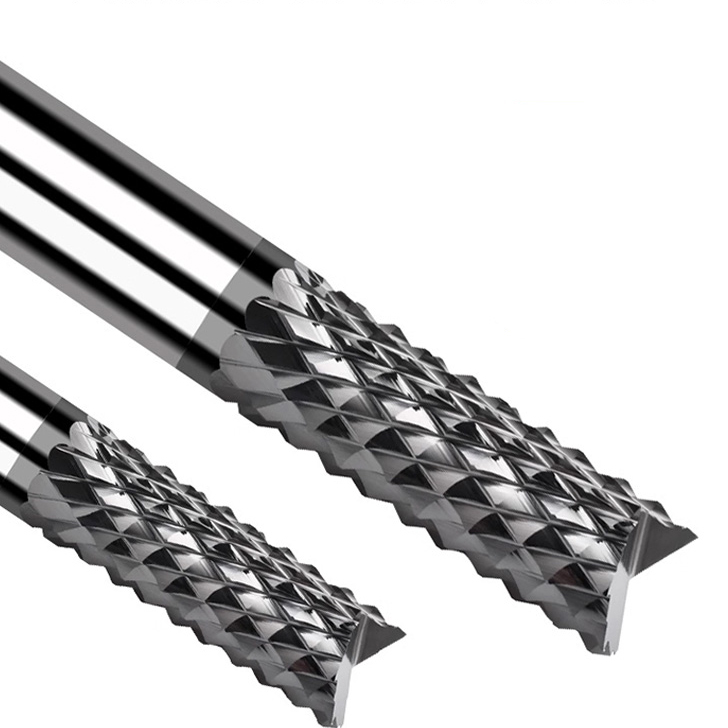

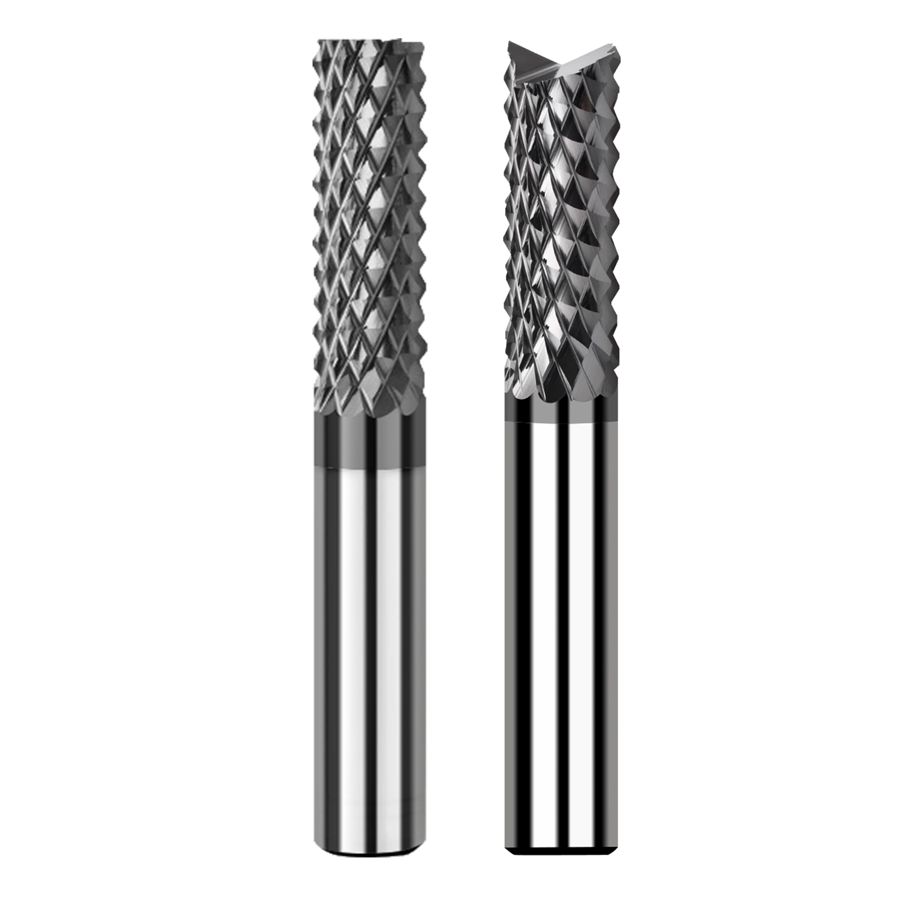

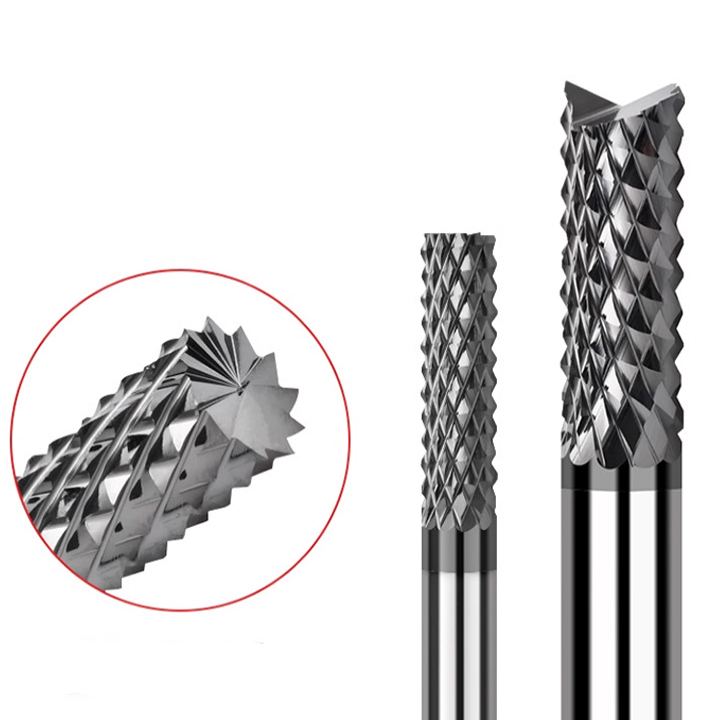

| Customized Diamond Coated End Mills 1mm Carbon Fiber Cnc Cutter Diamond End Mill Cutter for Carbon Fiber | ||||
|---|---|---|---|---|

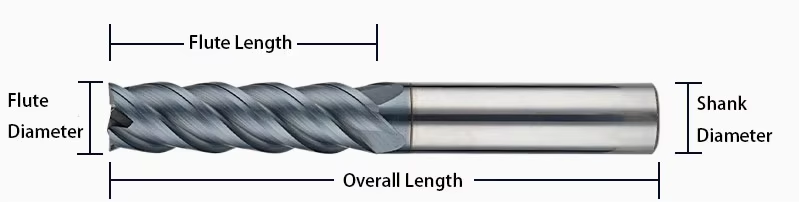

| Specifications | Flute Diameter | Flute Length | Shank Diameter | Overall Length |

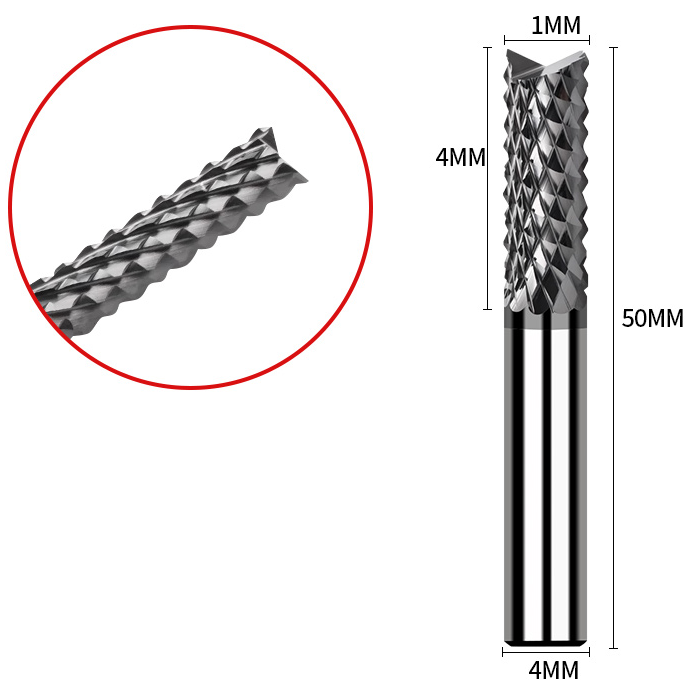

| D1-D4*d4*50L | 1-4 | 3/6/9/12 | 4 | 50 |
| D4*16*d4*75L | 4 | 16 | 4 | 75 |
| D4*20*d4*100L | 4 | 20 | 4 | 100 |
| D6*15*d6*50L | 6 | 15 | 6 | 50 |
| D6*24*d6*75L | 6 | 24 | 6 | 75 |
| D6*30*d6*100L | 6 | 30 | 6 | 100 |
| D8*20*d8*60L | 8 | 20 | 8 | 60 |
| D8*25*d8*75L | 8 | 25 | 8 | 75 |
| D8*35*d8*100L | 8 | 35 | 8 | 100 |
| D10*25*d10*75L | 10 | 25 | 10 | 75 |
| D10*40*d10*100L | 10 | 40 | 10 | 100 |
| D12*35*d12*75L | 12 | 35 | 12 | 75 |
| D12*45*d12*100L | 12 | 45 | 12 | 100 |
| D14*45*d14*100L | 14 | 45 | 14 | 100 |
| D16*45*d16*100L | 16 | 45 | 16 | 100 |
| D18*45*d18*100L | 18 | 45 | 18 | 100 |
| D20*45*d20*100L | 20 | 45 | 20 | 100 |
Customized Diamond Coated End Mills 1mm Carbon Fiber Cnc Cutter Diamond End Mill Cutter for Carbon Fiber can be used to machine Steel, Stainless steel, Cast iron, Non-Ferrous Mental, Titanium Alloy and Heat Resisting Alloy, High strength material.

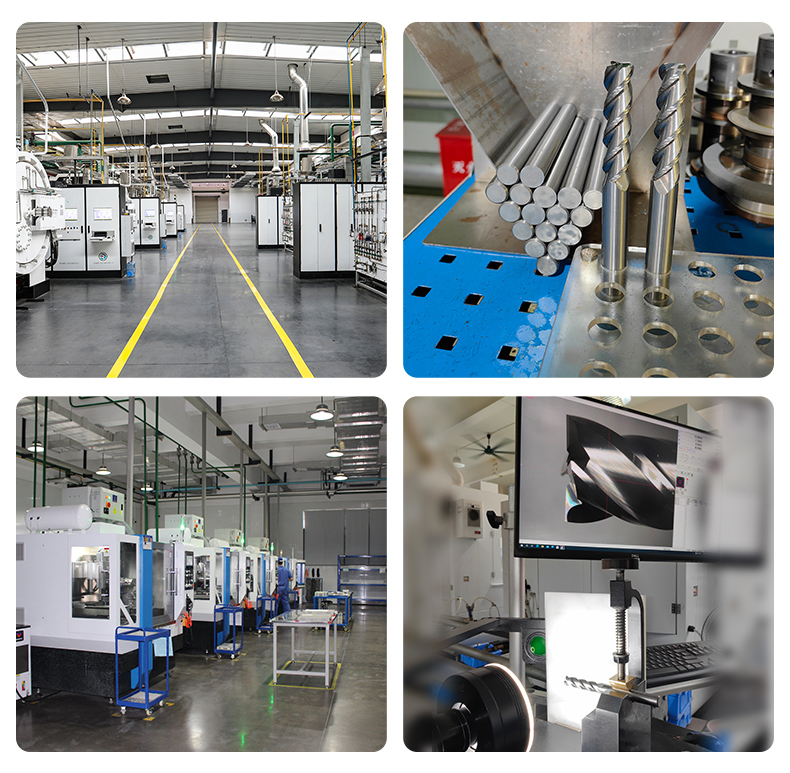

We are a high-tech industrial & trading integrated enterprise specializing in CNC cutting tools since 2004. Leveraging premium tungsten resources and 20+ years of expertise, we provide globally trusted, high-performance cutting solutions.
We are a manufacturer and we also have our own trading company.
If the goods are in stock, it normally takes 5-10 days. If the goods are not in stock, the delivery time is 15-25 days, depending on the quantity.
Yes, we can provide samples for free but do not pay for shipping the goods.
Yes, of course. We can provide the best price and we will give you a discount if your order quantity is large enough.
Yes, OEM and ODM can be provided. We have our own professional R&D team to provide you with satisfactory tool solutions.
Payment <= USD 1000, 100% in advance. Payment > USD 1000, 30% wire transfer in advance, balance paid before shipment.
