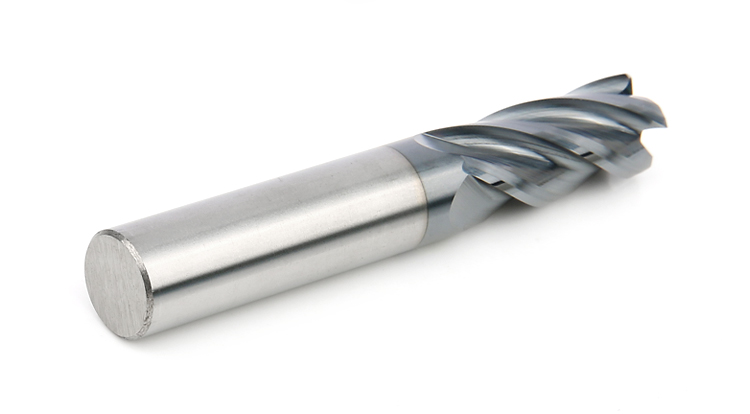

| Product Name | Carbide CNC Flat End Milling Cutter Tool |
| Material | Tungsten carbide |
| Flute | 4 Flutes |
| Shank Diameter | 3~20mm |
| Overall Length | 50/60/75/100/150mm or your requirements |
| Tolerance | -0.01~0mm |
| Coating | AlTiN, TiAlSiN, TiAlSiNX, Nano blue, DLC or your requirements |
| HRC | HRC45, HRC55, HRC60, HRC65 |
| Applicable Machine | CNC machining center, engraving machine, high speed machine |
| Suitable for | Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc |
| Item Grade | HRC45 (YG10X) | HRC55 (ZK30UF) | HRC60 (GU25UF) | HRC65 (GU25UF) |
|---|---|---|---|---|
| Details | Grain size 0.7um Co 10% Flexural strength 3320N/mm² |
Grain size 0.6um Co 10% Flexural strength 4000N/mm² |
Grain size 0.4um Co 12% Flexural strength 4300N/mm² |
Grain size 0.4um Co 12% Flexural strength 4300N/mm² |

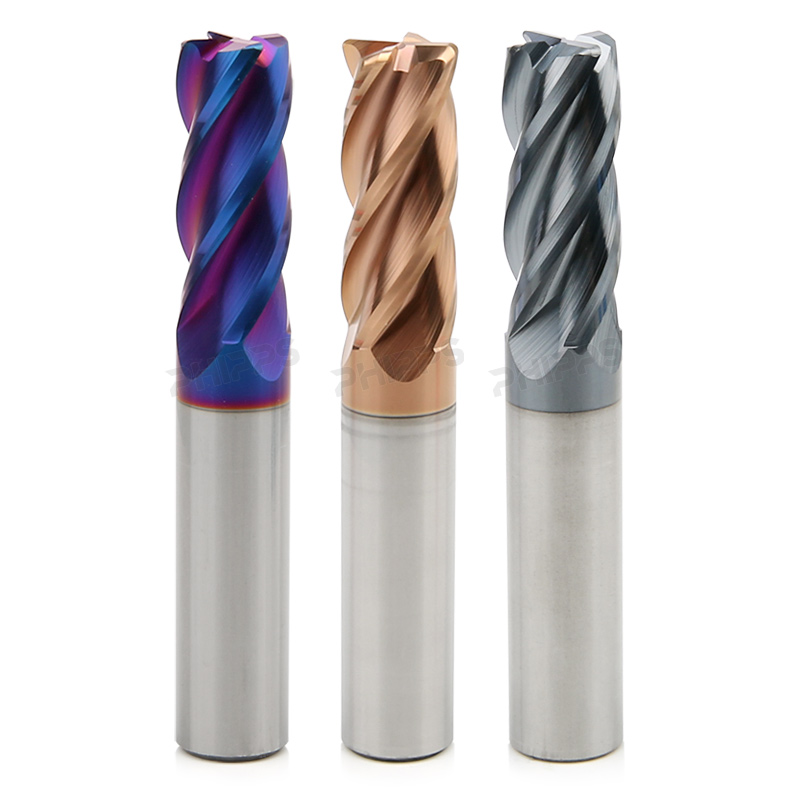

| End mill Grade | Coating Type | Color | Thickness (um) | Oxidation Temp.(°C) | Application |
|---|---|---|---|---|---|
| HRC 45 | AlTiN | Black | 1.5-3 | 850°C | General steel |
| HRC 55 | TiAlSiN | Bronze | 1.5-3 | 900°C | General steel, cast iron |
| HRC 60 | Nano | Dark Black | 1-3 | 1100°C | High hard material, mould steel, cast iron etc |
| HRC 65 | Nano | Blue | 2-4 | 1200°C | Titanium alloy, high temperature alloy, hardened Steel |

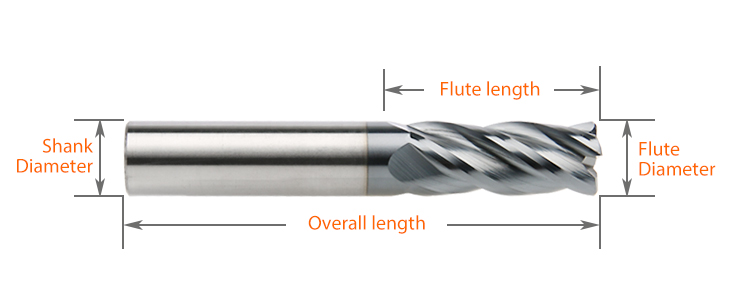

| Specification | Flute Dia. | Flute Length | Shank Dia. | Overall length | R angle |
|---|---|---|---|---|---|
| 3*8*3*50 | 3 | 8 | 3 | 50 | 0.5/1 |
| 3*12*3*75 | 3 | 12 | 3 | 75 | 0.5/1 |
| 3*15*3*100 | 3 | 15 | 3 | 100 | 0.5/1 |
| 2*5*4*50 | 2 | 5 | 4 | 50 | 0.5/1 |
| 3*8*4*50 | 3 | 8 | 4 | 50 | 0.2/0.5/1 |
| 4*10*4*50 | 4 | 10 | 4 | 50 | 0.2/0.5/1 |
| 4*16*4*75 | 4 | 16 | 4 | 75 | 0.5/1 |
| 4*20*4*100 | 4 | 20 | 4 | 100 | 0.5/1 |
| 5*13*5*50 | 5 | 13 | 5 | 50 | 0.5/1 |
| 5*20*5*75 | 5 | 20 | 5 | 75 | 0.5/1 |
| 5*25*5*100 | 5 | 25 | 5 | 100 | 0.5/1 |
| 5*13*6*50 | 5 | 13 | 6 | 50 | 0.5/1 |
| 6*15*6*50 | 6 | 15 | 6 | 50 | 0.5/1 |
| 6*25*6*75 | 6 | 25 | 6 | 75 | 0.5/1 |
| 6*30*6*100 | 6 | 30 | 6 | 100 | 0.5/1 |
| 6*40*6*150 | 6 | 40 | 6 | 150 | 0.5/1 |
| 8*20*8*60 | 8 | 20 | 8 | 60 | 0.5/1/2/3 |
| 8*28*8*75 | 8 | 28 | 8 | 75 | 0.5/1/2/3 |
| 8*35*8*100 | 8 | 35 | 8 | 100 | 0.5/1/2/3 |
| 8*50*8*150 | 8 | 50 | 8 | 150 | 0.5/1/2 |
| 10*25*10*75 | 10 | 25 | 10 | 75 | 0.5/1/2/3 |
| 10*40*10*100 | 10 | 40 | 10 | 100 | 0.5/1/2/3 |
| 10*50*10*150 | 10 | 50 | 10 | 150 | 0.5/1/2/3 |
| 12*30*12*75 | 12 | 30 | 12 | 75 | 0.5/1/2/3 |
| 12*45*12*100 | 12 | 45 | 12 | 100 | 0.5/1/2/3 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 0.5/1/2/3 |
