Nuts and Bolts Making Machines Automatic Thread Cutting Machine Nut Tapping Threading Machine

Specification

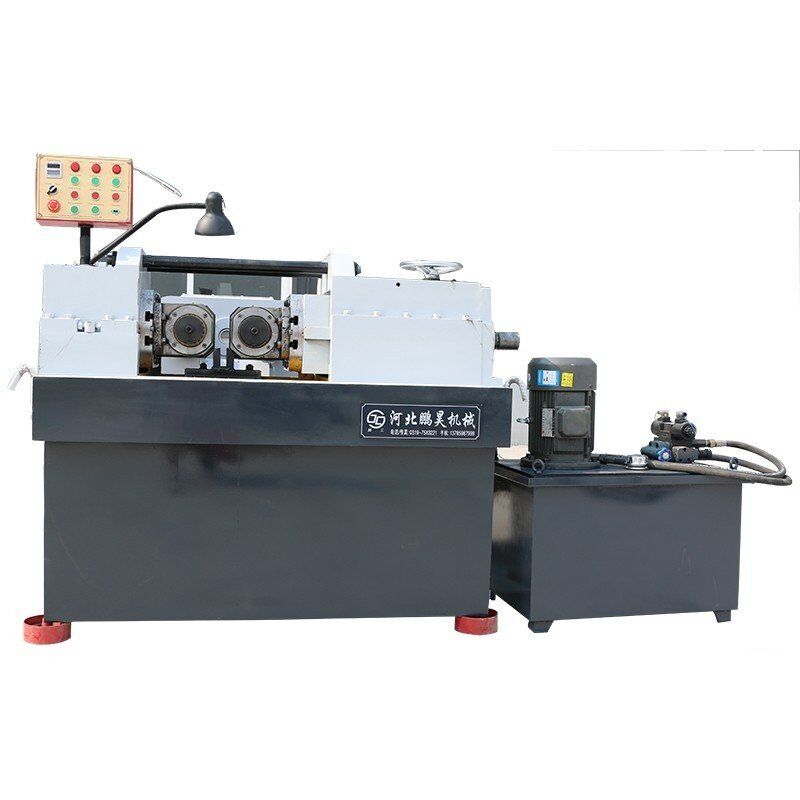

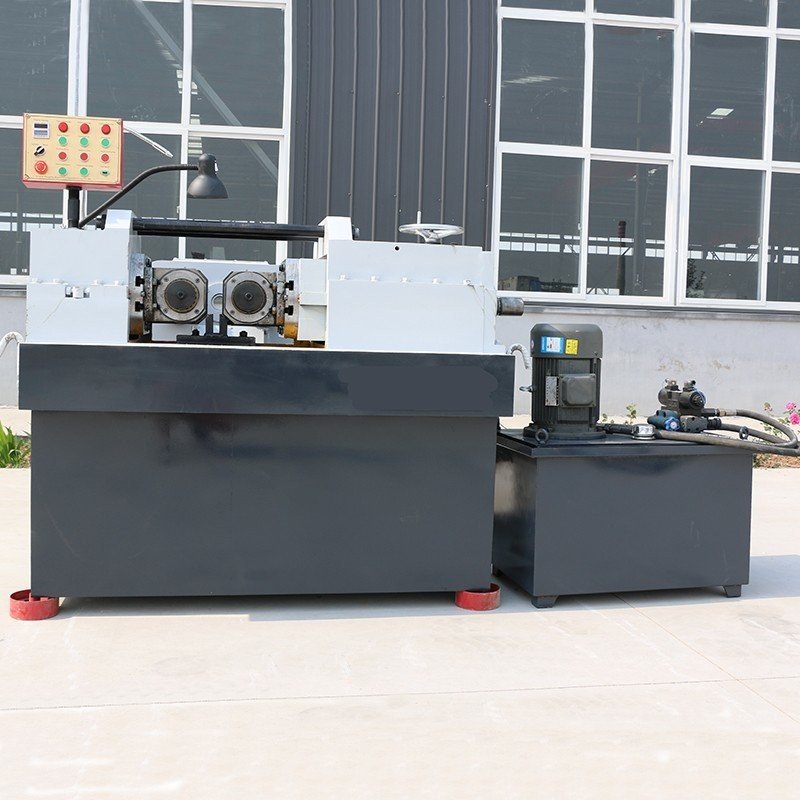

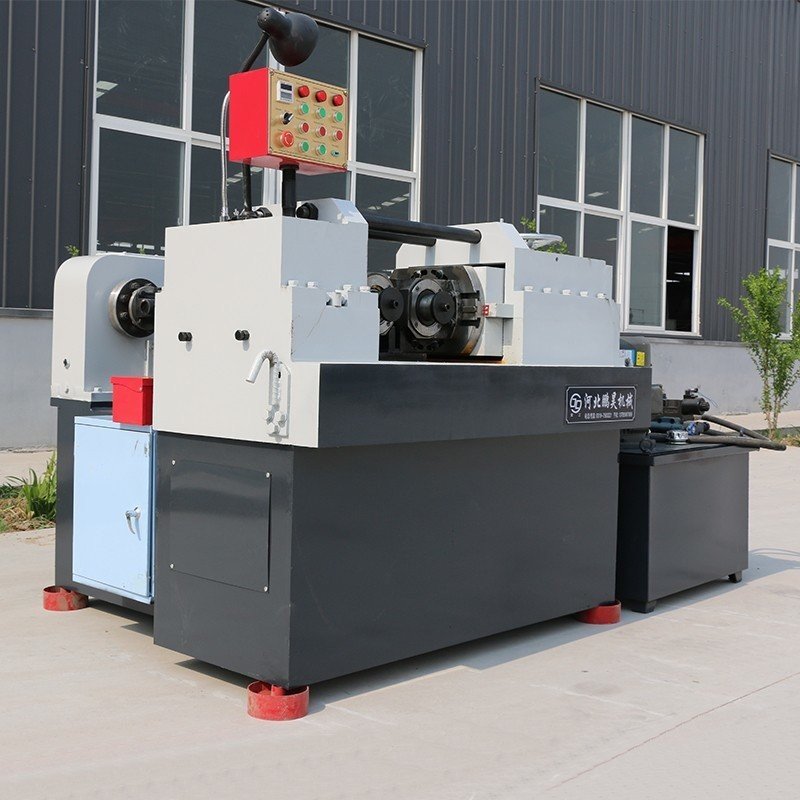

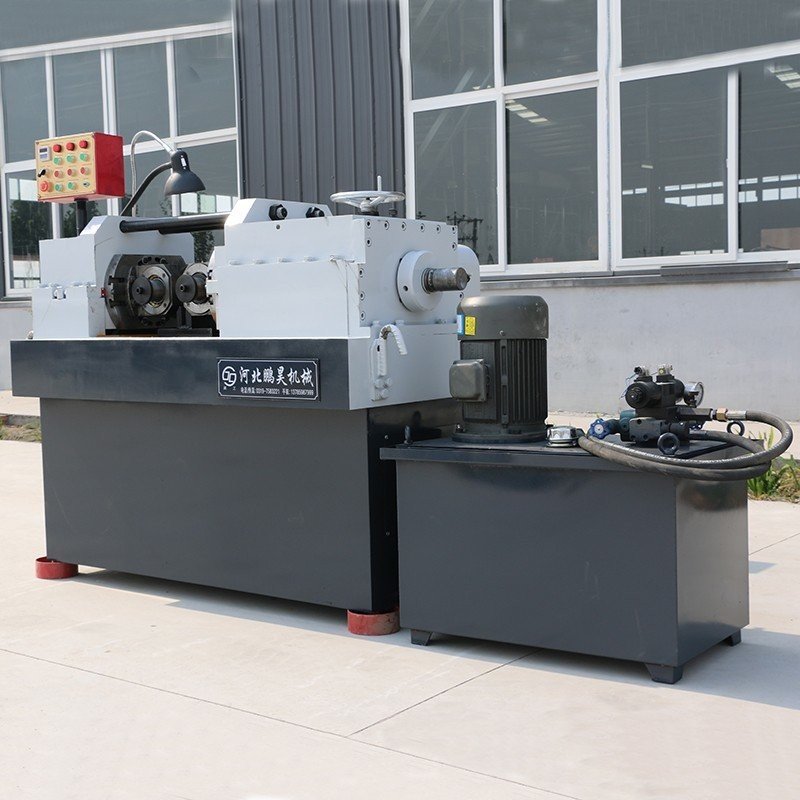

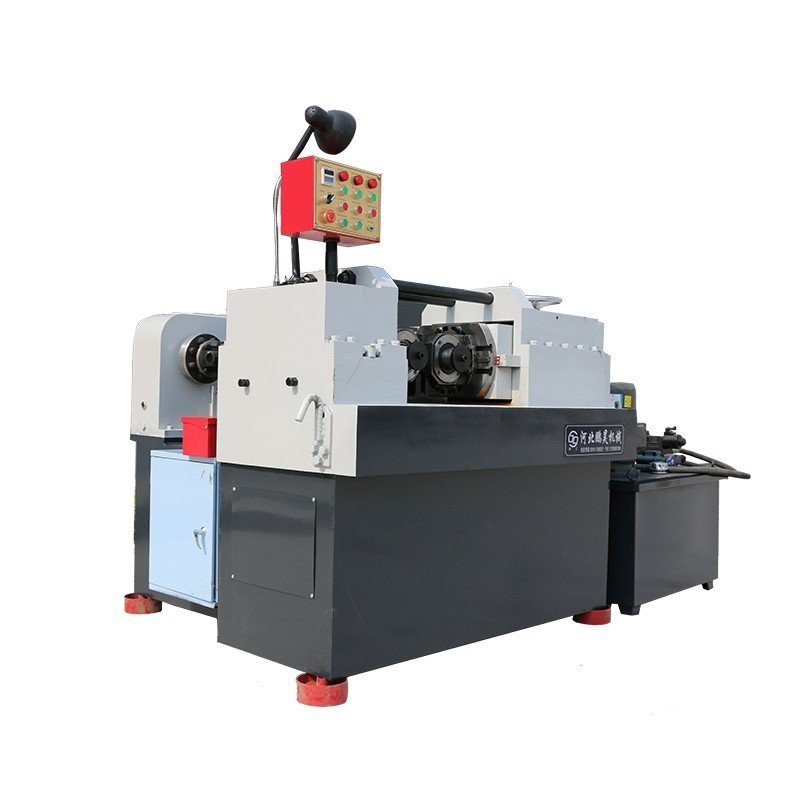

HYDRAULIC THREAD ROLLING MACHINE Z28-200
Rolling diameter	Φ12-100mm	Main power	11kw
Maximum rolling pressure	200KN	Hydraulic power	5.5kw
Max outer diameter of roller	220mm	Cooling power	0.12kw
Max width of roller	150mm	Rolling pitch	2-8mm
Length of thread	unlimited	Diameter of spindle	75mm
Size of host machine	179017301430mm	Spindle inclination angle	± 15°
Size of hydraulic station	760560960mm	Distance of two spindle	150-300mm
Speed of spindle	20/25/31/41/51/64 r/min	Weight	3000kg
Optional items: automatic feeder with PLC, automatic feeder without PLC

1. Can you customize the machine for us?

Yes, we are factory, we can customize the machine depend your request.

2. Can your technician come to our country to install and adjust the machine?

Yes, our technician can go to your country to help you install and adjust machine.

3. How long is the warranty?

Warranty 12 months. In period of warranty, we change the new parts for broken parts for free. We provide technical support for long-life.

4. If the machine has a problem, how long will it get a reply?

We will provide solutions within 24 hours.

5. What is the rolling pitch and spindle inclination angle capability?

The machine features a rolling pitch range of 2-8mm and a spindle inclination angle of ± 15°.

6. What are the weight and power specifications of this hydraulic thread rolling machine?

The machine has a total weight of 3000kg, running on a 11kw main power, 5.5kw hydraulic power, and 0.12kw cooling power system.
